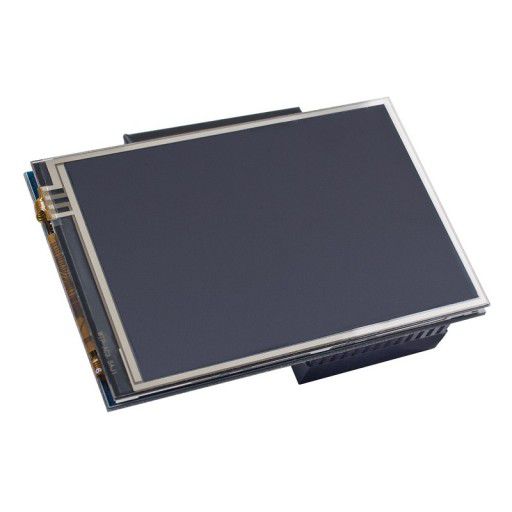

3.5-Inch 5FPS TFT Resistive Touch Screen for RPi 3B/3B+/4B
3.5-Inch 5FPS TFT Resistive Touch Screen for RPi 3B/3B+/4B 3.5-Inch 5FPS TFT Resistive Touch Screen for RPi 3B/3B+/4B

3.5-Inch 5FPS TFT Resistive Touch Screen for RPi 3B/3B+/4B

    • $16.25
  • Ex Tax: $16.25
    • 5 or more $15.43
    • 20 or more $15.43
    • 50 or more $12.18
  • Cashback: $0.49
  • CytronCash Balance: Login
  • Login to view ProMaker's Insider Price!
  • Availability:
    31

Accessories you may need

Enter desired quantity before clicking 'Add to Cart' button

Raspberry Pi 3 Model B+

Raspberry Pi 3 Model B+

    $38.50 Ex Tax: $38.50

    • Total accessories: $0.0
    • Grand total: 16.25
    • Product Code: DS-TFT-3.5
    • MPN:
    • Warranty Period: 12 months

    Buy locally from a partner

    Country:
    Description

    Note: From Aug 2021 onwards, the display that we stocked comes with 2-pin (5V and GND) to power a cooling fan.



    With this 2-pin power extension, you can now add a low-profile cooling fan to keep the Raspberry Pi cool even under the Screen.

    Note: The low-profile cooling fan, Raspberry Pi board, and the base are not included in this Touch Screen packing list, please get them separately.



    Is this not the cutest, little display for the Raspberry Pi? It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay so it is slightly larger than the Raspberry Pi board, which is perfect to cover it. The plate uses a high-speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video, etc. Best of all it plugs right on top nicely covering the Raspberry Pi board. Single power from Raspberry Pi is sufficient to operate the screen. As it uses the SPI and Power pin from Raspberry Pi's GPIO, it is nicely stacked on the RPi board. We also carry the perfect case/enclosure for Raspberry Pi 3B/3B+ and also 4B to be used with this LCD.

    check this video out where we assemble the Raspberry Pi 3B+ and the LCD enclosed with the case.

    And here is the LCD in action:



    Here is another video in Bahasa Malaysia with English Subtitles to install the graphics and touch screen driver on Raspberry Pi 4 Model B:



    Here is the pin assignment table of this touch screen LCD:

    Note: The graphic can only be displayed through HDMI or this Touch Screen LCD.


    We have tested and verified this touch screen LCD with:

    Yet, it should be working perfectly with:

    Note: Do remember to install the driver for graphic and also touch screen controller :)

    Features
    • 480x320 resolution
    • Refresh rate: 5 fps (frame per second)
    • Universal 3.5” Display for the Raspberry Pi
    • Compatible with Raspberry Pi A, B, A+, B+, and Pi 2/3/4 versions
    • Powered not only from your computer but also from your portable power
    • Adapt for Raspbian system
    • LCD Type: TFT
    • LCD Interface: SPI
    • Touch Screen Type: Resistive
    • Touch Screen Controller: XPT2046
    • Colors: 65536
    • Backlight: LED
    Packing List
    • 1 x 3.5" TFT Resistive Touch Screen with SPI Interface
    • 1 x Small Pen
    Resources

    Check out the calibration process:


    Here are the steps we refer from this wiki page to install the driver graphic controller and touch screen controller:

    Driver Installation:

    This LCD Module needs to install the driver first:

    1. Assuming you have run Raspbian either from NOOBS or Raspbian Image, please get the image from here, or the MicroSD card with NOOBS from here: 16GB, 32GB.
    2. Open terminal(SSH) and install the driver on Raspberry Pi: (tested on Raspberry Pi 3B+,3B,2B,2B+,1B,ZERO)

    Run these commands in the terminal:

    sudo rm -rf LCD-show

    git clone https://github.com/goodtft/LCD-show.git

    chmod -R 755 LCD-show

    cd LCD-show/

    sudo ./LCD35-show

    Wait a few minutes, after reboot, the graphic will appears on the touch screen LCD.



    Note: If you having problem to turn on the display, try follow the steps shown in this forum.



    Touch screen calibration:

    This LCD can be calibrated using a program called xinput_calibrator. Install it with the commands:

    cd LCD-show/

    sudo dpkg -i -B xinput-calibrator_0.7.5-1_armhf.deb



    Click the Menu (Raspberry Pi Logo) button on the taskbar, choose Preference -> Calibrate Touchscreen.

    Finish the touch calibration following the prompts. Maybe rebooting is required to make calibration active.

    You can create a 99-calibration.conf file to save the touch parameters (not necessary if the file exists).

    /ect/X11/xorg.conf.d/99-calibration.conf
