RCSwitch10 - RC controlled Relay Switch
RCSwitch10 - RC controlled Relay Switch RCSwitch10 - RC controlled Relay Switch RCSwitch10 - RC controlled Relay Switch

RCSwitch10 - RC controlled Relay Switch

    • Login to view ProMaker's Insider Price!
    • $9.75
  • Ex Tax: $9.75
    • 10 or more $9.26
    • 20 or more $8.78
  • Cashback: $0.29
  • CytronCash Balance: Login
  • Availability:
    127
  • Product Code: RCS10A
  • MPN:
  • Warranty Period: 12 months

Buy locally from a partner

Country:
Description

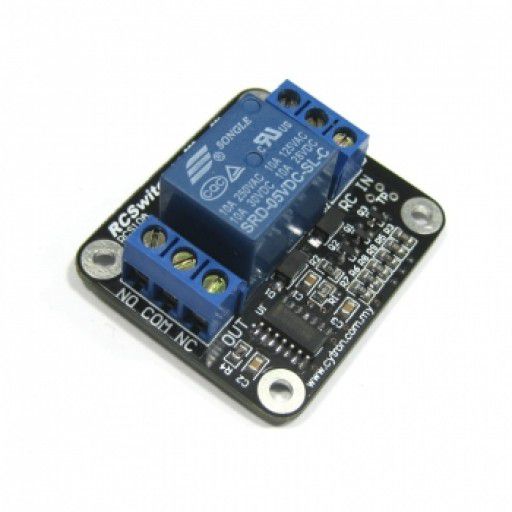

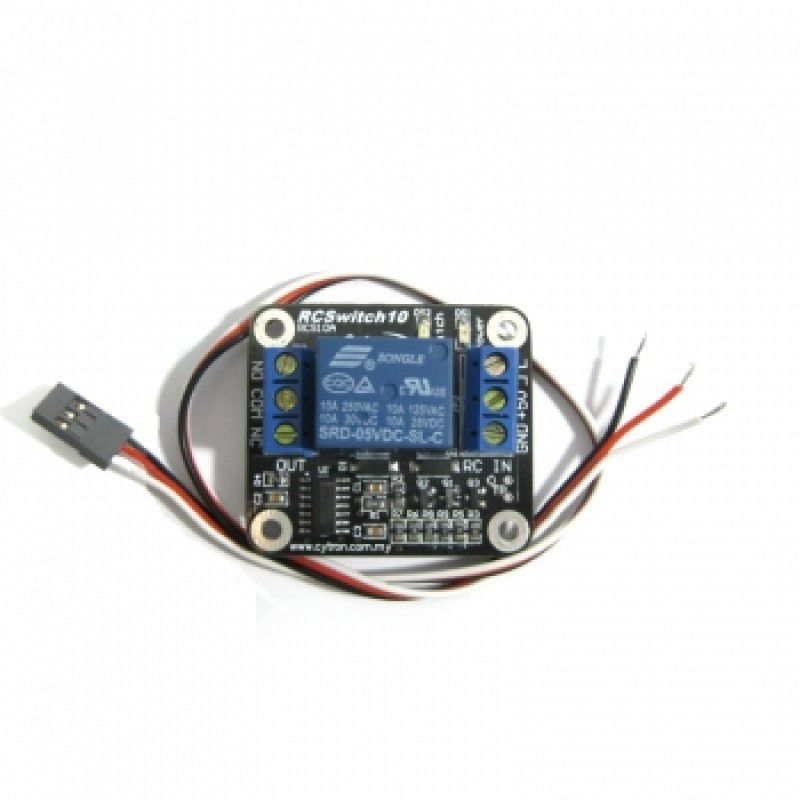

 RCSwitch10 is an RC-controlled relay switch. It can be turned on and off by using an RC controller. Some example applications of the RCSwitch10 are:

  • Powerful auxiliary weapons in RC combat tournament.
  • Glow plugs on nitro RC vehicles.
  • High-powered lighting system on RC aircraft, boats, and cars.
  • Domestic appliances and home automation.
  • Non-critical automotive electrics like glow wire


Features

Specifications:

  • Relay Type: Single pole, double throw
  • Max voltage: 250VAC, 30VDC
  • Max current: 10A
  • Dimension: 43.4mm x 38.3mm x 17.4mm
Resources
RCSwitch10 Connection Diagram
Fritzing File
Fritzing Tutorial
Q & A (6)
the fritzing requires permission to be downloaded. please provide me with the fritzing file access. ( MohammedTabish patel , 05/03/2022 )
Sorry for this issue. Let me check with my team. At the same time, please send an email to support@cytron.io.
Can it handle a 2 cell Lipo on the rc signal side? (Operating voltage) Or 6v is the max? Will it burn on 8.4v? Can the trigger point to activate the switch be changed ? ( Saurabh Srivastava, 26/09/2016 )
Hi, Normal supply voltage for RC switch is 5V and 6V is a maximum. What do you mean by trigger point? For input to control RC switch is depends on your setting at TX/RX controller. If you have further question, you can ask at our technical forum, as this session is only for short inquiry. Thanks. :)
Can this be use with XYD-6D-350? ( Mr.B27, 09/09/2016 )
Hi,  Yes, you can use it, But need to use solenoid motor starter to support the current. If you have further question, you can ask at our technical forum, as this session is only for short inquiry. Thanks. ??
I have been used a RCSwitch10 for 2years and recently it became temparature sentitive. It goes off at 1.4-1.5ms normally but the neutral zone goes down to less than 1ms at about 100degree(F) and comes back when cooled. I have checked the responsible parts on the board and found that the capaciter C2 is very much heat sensitive. Could you tell me the capacity number of the cpacitor C2 so that I can try to fix it before throw away ? ( Tsunetaro Sakurai, 29/05/2016 )
I believe our friend from Elefine has contacted us with this issue and our technical team has reply them. You can also contact our teachnical team at support@cytron.com.my
is this can be used as a controller ( Jeff, 19/05/2015 )
As a controller? Not really understand what you mean. This device will receive input from RC receiver and switch the relay ON/OFF according to RC signal.
hi.. how to control the forward reverse motor by using RC switch, please advice...tq ( amy, 29/03/2015 )
The RCSwitch10 only can turn on/off a motor, it can't change the direction of the motor.
